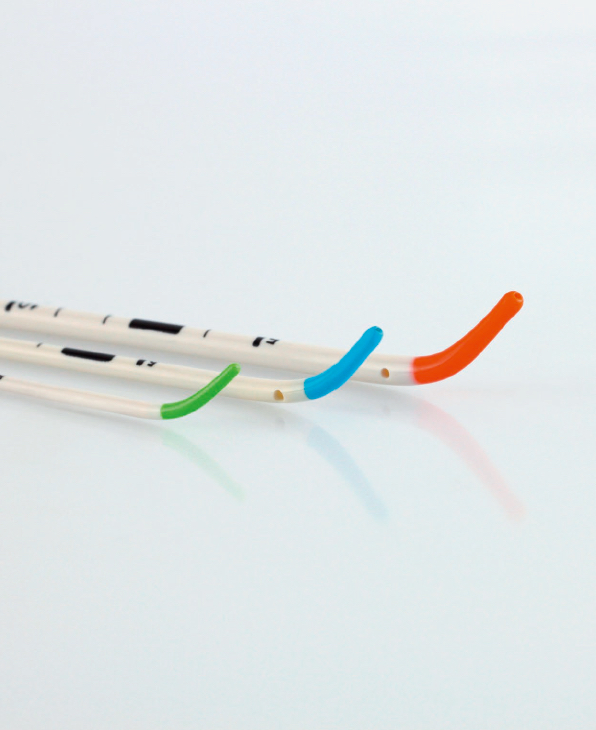

Malleable Intubating Guide for Difficult Airway Management NOW AVAILABLE IN SIZES 8FR AND 11FR!! The S-Guide is an intubation aid for difficult airway management and facilitates orotracheal intubation, especially in patients where visualisation of the glottis is inadequate. Due to its malleability, it is suitable for direct and indirect laryngoscopy, in particular for video laryngoscopes with non channelled blades. With the O2 connectors, oxygenation* is possible throughout the whole intubating process, not impairing oxygenation even when the S-Guide is bent. For patient safety the S-Guide is provided with a coloured, preformed and atraumatic soft tip. Features 3 benefits in 1 – Malleability – Oxygenation* – Soft Tip MALLEABILITY Specific design of material combines: - Malleability, to preform the tracheal tube - Rigidity, to manoeuvre the tracheal tube Special black marking on the sizes 11 Fr and 15 Fr shows ideal position to preform the tracheal tube (hockey-stick marking) OXYGENATION* For sizes 11 Fr and 15 Fr Three openings at the distal end of the S-Guide to ensure appropriate oxygen flow 2 different connectors: O2 - 15 mm Connector and O2 Connector *Oxygenation is possible with the sizes 11 Fr and 15 Fr. Oxygenation is not possible with the size 8 Fr. SOFT TIP Preformed, soft and atraumatic tip Coloured tip: - For better visualisation within the glottic structures - For size coding S-Guide Size Length Tracheal tube I.D. Order number Box 8 Fr 40 cm ≥ 3.0 mm REF 33-92-400-1 5 11 Fr 65 cm ≥ 4.5 mm REF 33-91-650-1 5 15 Fr 65 cm ≥ 6.0 mm REF 33-90-650-1 5 Product Specifications Shelf life of 5 years Sterile packed Single use product Brochure and Application video in links below.
